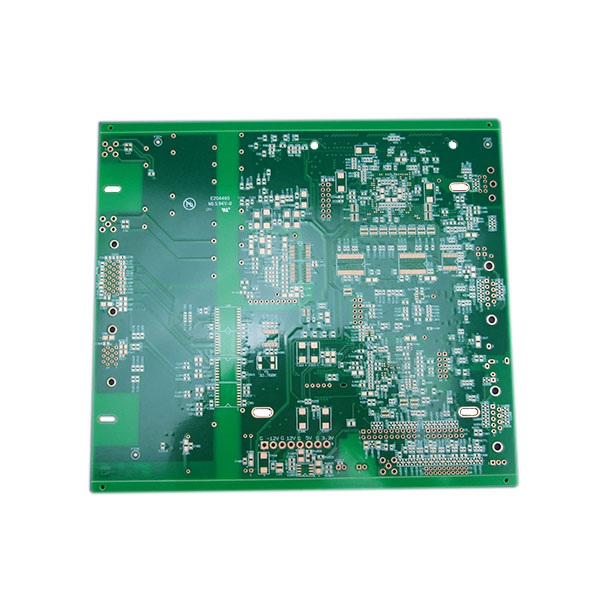

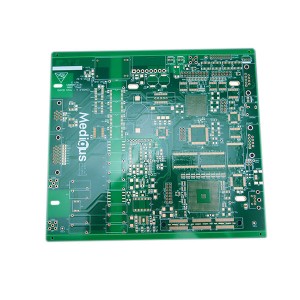

Ultrasound board gerd treatment board

Short Description:

This is a PCB assembly project for laser healing device. A footprint of ISO 13485 certified supporting your manufacturing requirements in one of the most stringent industry: our Medical capabilities cover a wide range of specific segments from diagnosis equipment to handheld devices, from printed circuit boards assembly (PCBA) to finished products assembly.


  • FOB Price: US $190/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 4 layers
    Board thickness 1.60 MM
    Material FR4
    Copper thickness 1 OZ
    Surface Finish HASL lead free
    Min Hole(mm) 0.30mm
    Min Line Width(mm) 0.20mm (8 mil)
    Min Line Space(mm) 0.20mm (8 mil)
    Solder Mask Green
     Legend Color White
    Board size 190*70mm
    PCB Assembly  Mixed surface mount & through hole assembly & box build
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 189 per board
    IC Package BGA; QFN
    Main IC Texas Instruments, Fairchild Semiconductor, Analog Integrations Corporation
    Test  AOI, X-Ray, Functional test
    Application Medical

    Electronic Manufacturing Services for Medical

    A footprint of ISO 13485 certified supporting your manufacturing requirements in one of the most stringent industry: our Medical capabilities cover a wide range of specific segments from diagnosis equipment to handheld devices, from printed circuit boards assembly (PCBA) to finished products assembly.



    Quality, processes and traceability are key components of a successful medical product: with our PCBA history and as a contract manufacturing company, we, at Pandawill, support our customers at each stage of their product lifecycle with a relevant footprint of ISO 13485 certified facilities, supporting your growth in each region.



    Serving the medical industry has been in Pandawill’s DNA since its first day. Our Electronic Manufacturing Services (EMS) company supports industry pioneers worldwide from any of our five ISO 13485 certified facilities, we focus on medium/high mix to low/medium volume projects, putting our expertise and approach to regulatory compliance standards, at the service of our customers’ products. From imaging devices to eHealth equipment, we, ISO 13485 certified EMS company, deliver engineering & manufacturing services to medical devices.



    We support our customers competitiveness and contribute to improving patients’ final experience in building reliable and technologically advanced products on behalf of our partners, with care.



    Electronic manufacturing service provider for Medical, our full solution includes:

    > Imaging devices and equipment

    > Diagnosis devices and equipment

    > Point of care diagnosis

    > e-Health

    > Sleep regulation systems

    > Hearing aid devices and equipment

    > Nurse Call system
