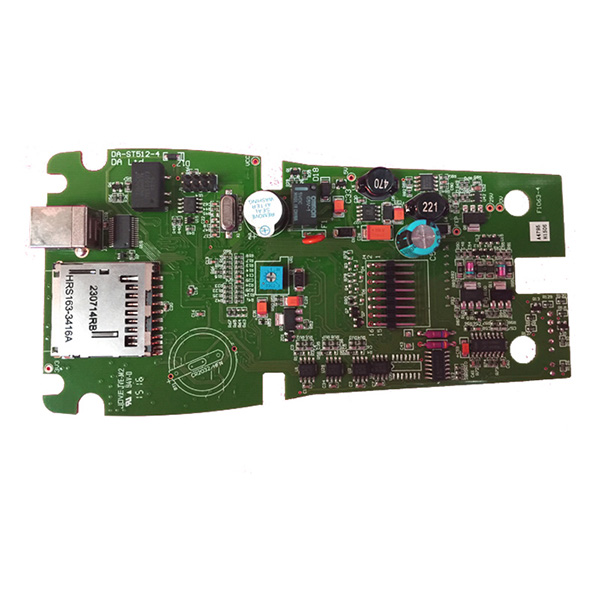

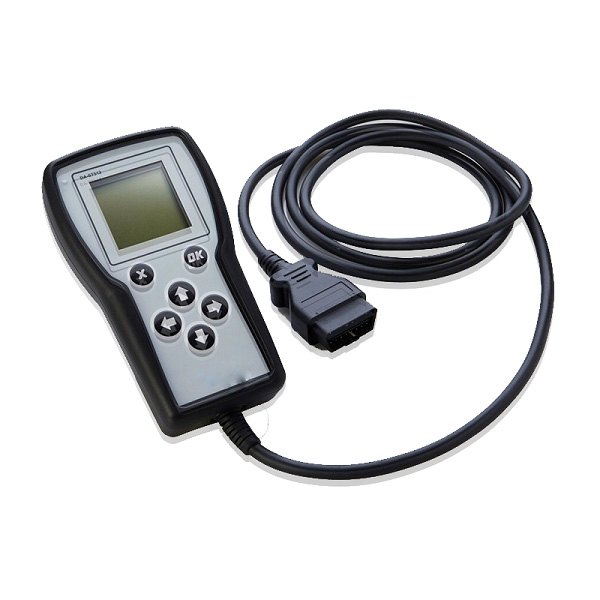

PCB assembly for Automotive Diagnostic tool

Short Description:

This is a PCB assembly project for automotive diagnostic tool. The automotive industry has very stringent requirements in terms of operations and processes, quality and on time deliveries. All of which being priorities and at the heart of Asteelflash’s rules of operations, worldwide. As an automotive electronics company and automotive PCBA manufacturer, we, at Pandawill, deliver high quality services in engineering, design and prototyping.


  • FOB Price: US $16/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 4 layers
    Board thickness 1.20 MM
    Material Shengyi S1000-2 FR-4(TG≥170℃)
    Copper thickness 1 OZ(35um)
    Surface Finish (ENIG)   Immersion gold
    Min Hole(mm) 0.25mm
    Min Line Width(mm) 0.18mm
    Min Line Space(mm) 0.20mm
    Solder Mask Green
     Legend Color White
    PCB Assembly  Mixed surface mount assembly on both sides
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 280 per board
    Main IC Freescale, Texas Instruments,
    Test  AOI, X-Ray, Functional test
    Application Automotive

    The automotive industry has very stringent requirements in terms of operations and processes, quality and on time deliveries. All of which being priorities and at the heart of Pandawill’s rules of operations, worldwide. As an automotive electronics company and automotive PCBA manufacturer, we, at Pandawill, deliver high quality services in engineering, design and prototyping.

    Automotive electronics require the highest level of quality given the related applications, changing the way we live and move around, across the board. Electronics are the main contributor to the connected vehicle revolution we are witnessing.

    Thanks to electronic manufacturing solutions, engineering and manufacturing services, we, as an EMS company for years, have developed high-end solutions for automotive electronics.

    With electronic content per car expected to increase and contemplating the likelihood of seeing autonomous cars wandering around our streets, we at Pandawill are proud to contribute to changing the way people live and travel around throughout extensive experience in Automotive-related electronic manufacturing services, from controllers and power modules to infotainment, door modules, camera products, smart lighting, etc.

    Our experience as a contract manufacturer in automotive brings to our clients the best electronic manufacturing services (EMS), from design, engineering and prototyping to new product introduction and mass production.

    Electronic manufacturing service provider for Automotive, we cover numerous applications:

    > Automotive camera product

    > Temperature & humidity sensors

    > Headlight

    > Smart lighting

    > Power modules

    > Door controllers & door handles

    > Body control modules

    > Energy management
