Outdoor sports camera

Short Description:

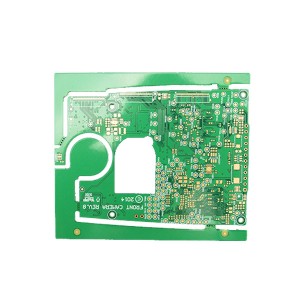

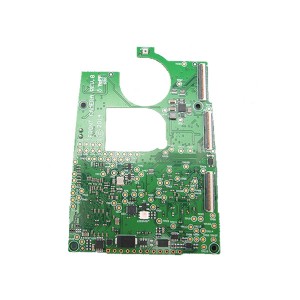

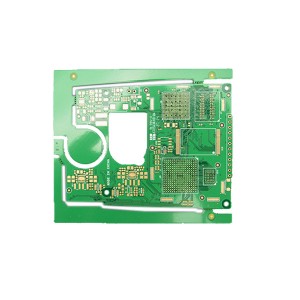

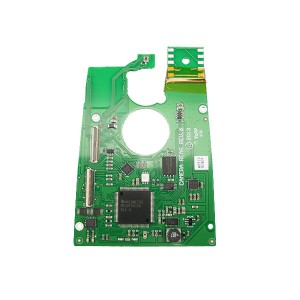

This is a PCB assembly project for outdoor sports camera product. Consumer electronics, from audio products to wearables, gaming or even virtual reality, are all getting more and more connected. The digital world we live in requires a high level of connectivity and advanced electronics and capabilities, even for the simplest of the products, empowering users worldwide.


  • FOB Price: US $12/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    outdoor sports camera

    Product Details

    Layers 6 layers
    Board thickness 1.60 MM
    Material Shengyi S1000-2 FR-4(TG≥170℃)
    Copper thickness 1 OZ(35um)
    Surface Finish (ENIG)   Immersion gold
    Min Hole(mm) 0.20mm
    Min Line Width(mil) 5.5 mil
    Min Line Space(mil) 5.2mm
    Solder Mask Green
     Legend Color White
    Board size 90*68 mm
    PCB Assembly  SMT on both side
    RoHS Complied Lead free assembly process
    Min components size 0402
    Total components 821 per board
    IC Package BGA; QFN
    Main IC Fairchild, NXP, Maxim, TI, Micron, Linear, Xilinx, Atmel, Cypress Semi, Micrel, ST
    Test  AOI, X-Ray, Functional test
    Application Camera

    Consumer electronics, from audio products to wearables, gaming or even virtual reality, are all getting more and more connected. The digital world we live in requires a high level of connectivity and advanced electronics and capabilities, even for the simplest of the products, empowering users worldwide.



    At Pandawill, we deliver high end electronic manufacturing solutions for consumer electronics, from design, engineering, and prototyping, to mass production and end-to-end product lifecycle solutions.



    As electronic contract manufacturing company, we provide full turnkey services from design services to reverse engineering and obsolescence management. Sourcing the right components and making sure it all assembles perfectly based on your requirements, is our core expertise.



    Design, engineering, prototyping, printed circuit board assembly (PCBA), introduction of a new product (NPI services), smart supply chain solutions, intellectual property management… We offer a wide range of services to our customers.



    Our state-of-the-art capabilities, combined with our preferred network of qualified suppliers, makes us the partner to-go-to for an efficient one-stop solution from prototyping to mass production and end-to-end product lifecycle solutions.



    Electronic manufacturing service provider for Consumer Electronics, our capabilities include:

    > Audio devices and systems

    > Consumer medical devices

    > Multimedia devices and equipment

    > Drones

    > Robotics

    > Educational tech
