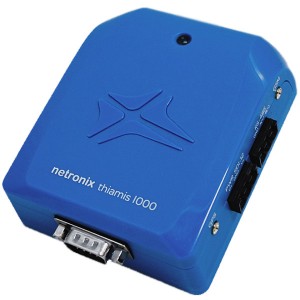

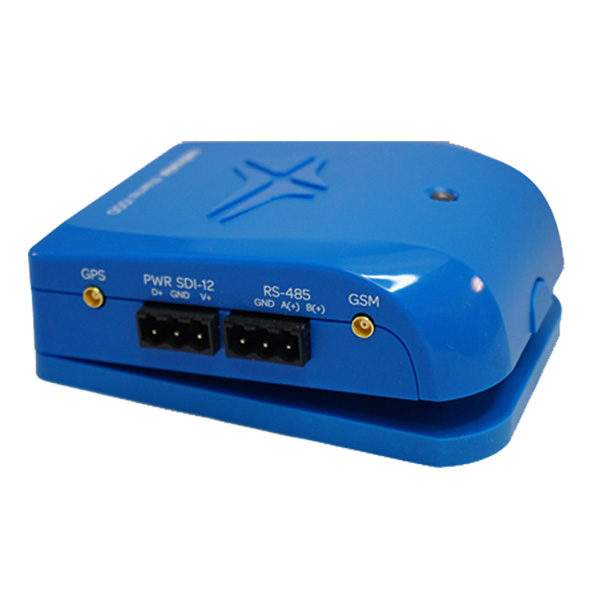

IoT data acquition device
Product Details

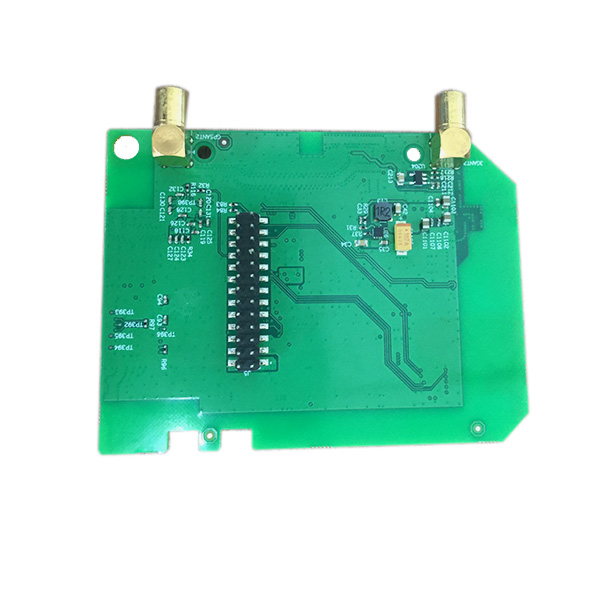

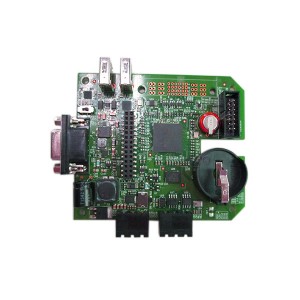

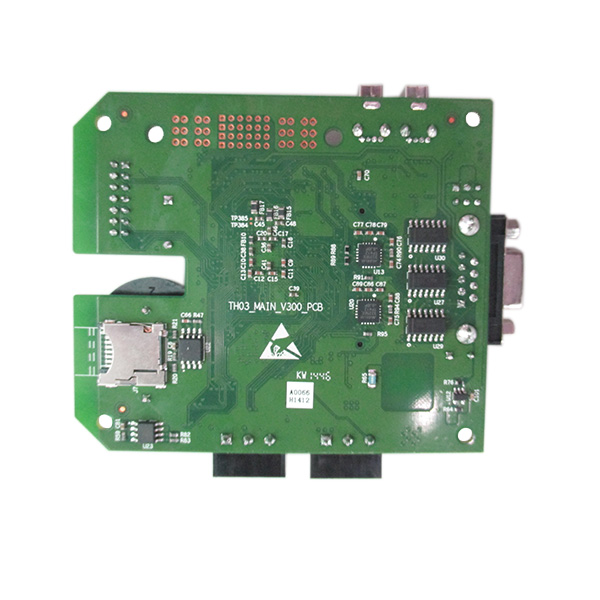

| Layers | 6 layers |
| Board thickness | 1.60 MM |
| Material | FR4 Shengyi S100-2 tg170 |
| Copper thickness | 1 OZ |
| Surface Finish | Immersion gold |
| Min Hole(mm) | 0.30mm |
| Min Line Width(mm) | 0.15mm |
| Min Line Space(mm) | 0.18mm |
| Solder Mask | Green |
| Legend Color | White |
| Board size | 105*82mm |
| PCB Assembly | Mixed surface mount & through hole assembly |
| RoHS Complied | Lead free assembly process |
| Min components size | 0402 |
| Total components | 1095 per board |
| IC Package | BGA; QFN |
| Main IC | Maxim, ISSI, Texas Instruments, On Semiconductors, , Atmel, Telit, Zigbee |
| Test | AOI, X-Ray, Functional test |
| Application | IoT data acquition |
Electronic Manufacturing Services for the Internet of Things
The Internet of Things is not a buzz word: it’s already here. There will be 200 billion objects in the IoT world, by 2020. And they’ll all interact with each other.
IoT device manufacturers are more numerous today. Thus, as an electronic contract manufacturing company, we, at Pandawill, have changed our methods of working to adapt all of our processes to Internet of Things: our factories are smarter, including new methods like 3D-printing, big data analysis or smart EMS supply chain management.
From engineering and manufacturing services to smart printed circuit board assembly, we, at Pandawill EMS company, bring expert solutions to Internet of Things devices.
The Internet of Things is set to change our world: as an OEM in this segment, you are facing technology challenges in terms of manufacturing but also under pressure as time to market is critical in such a revolutionnary industry. We understand perfectly the protocols and the technology behind each and any connected device.
Matter of fact, we’ve assembled tons of them and supported market introduction of some of the most advanced Internet of Things products. By putting our expertise at your service, we will unlock the potential of the future for you and your customers.
Electronic manufacturing service providers for Internet of Things, we serve the connected world:
> Automated door controls and systems
> Sensors (Motion, Leak, Intrusion, etc.)
> Gateway modules
> Communication modules
> Smart home central controllers
> Smart meters
> Smart lighting
