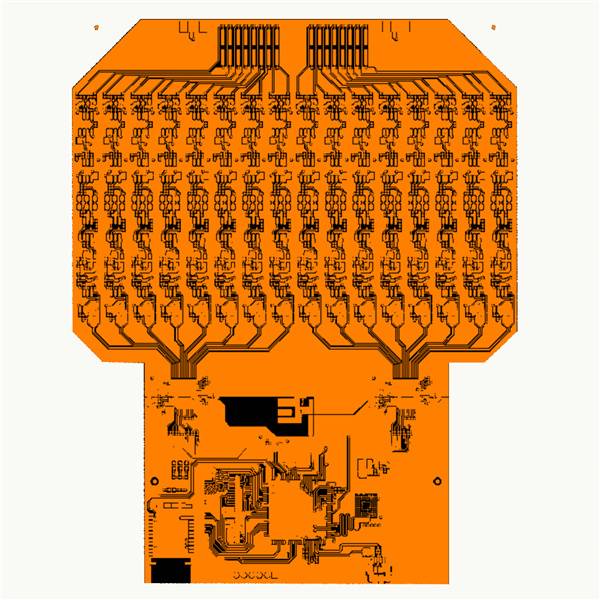

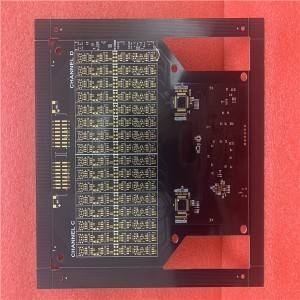

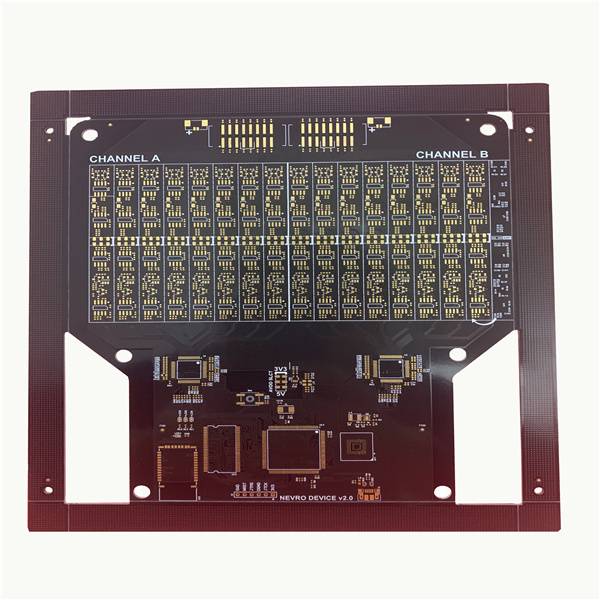

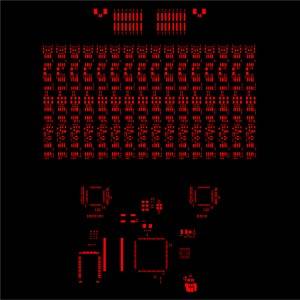

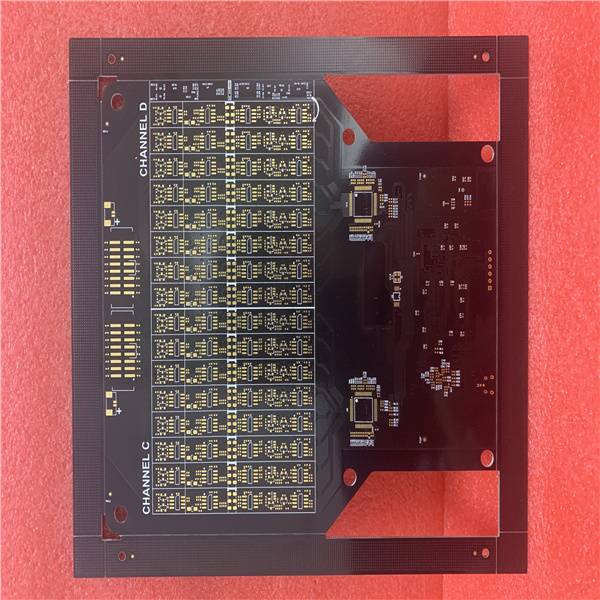

4 layer medical electronics PCB design

Short Description:

This is a 4 layer PCB layout project for the medical electronic product. Pandawill does not fit the factory to the design, but rather, to reduce unnecessary complexity and risk, we fit the right design to the right factory. This makes a huge difference in that Pandawill works to the strengths and capabilities of the factories


  • FOB Price: : US $12/Piece
  • Min Order Quantity(MOQ):: 1 PCS
  • Supply Capability:: 100,000,000 PCS per month
  • Payment Terms:: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layer 4 layers
    Total Pins 8903
    Board thickness 1.6MM
    Material FR4 tg 170
    Copper thickness  1 OZ  (35um)
    Surface Finish ENIG
    Min via 0.15mm (mechanical drill)
    Min line width/spacing 4 / 4 mil
    Solder Mask Black
    Silk screen  White
    Design tool Allegro
    Design type Medical electronics PCB design

    Introduction

    Pandawill does not fit the factory to the design, but rather, to reduce unnecessary complexity and risk, we fit the right design to the right factory. This makes a huge difference in that Pandawill works to the strengths and capabilities of the factories.

    This awareness is achieved through a detailed knowledge of our factory capabilities and a true understanding of their technology and performance on a monthly basis. This information is provided to our account management and customer service/support teams so that we can compare technical capability to design requirements right from the very start of the quoting process. This is an automated process, which provides alternatives with regard to price, as well as technical capability. Having the best possible options is a prerequisite for manufacturing the highest quality products.

    PCB design type: High-Speed, Analog, Digital-analog Hybrid, High Density/Voltage/Power, RF, Backplane, ATE, Soft Board, Rigid-Flex Board, Aluminum Board, etc.
    Design tools: Allegro, Pads, Mentor Expedition.
    Schematic tools: CIS/ORCAD, Concept-HDL, Montor DxDesigner, Design Capture, etc.

    ● High Speed PCB Design
    ● 40G / 100G System Design
    ● Mixed Digital PCB Design
    ● SI/PI EMC Simulation Design
    Design Capability
    Max design layers    40 layers
    Max pin count     60,000
    Max connections    40,000
    Minimum line width     3 mil
    Minimum line spacing     3 mil
    Minimum via     6 mil (3 mil laser drill)
    Maximum pin spacing     0.44mm
    Max power consumption/PCB    360W
    HDI Build    1+n+1; 2+N+2, X+N+X, Any layer HDI in R&D
