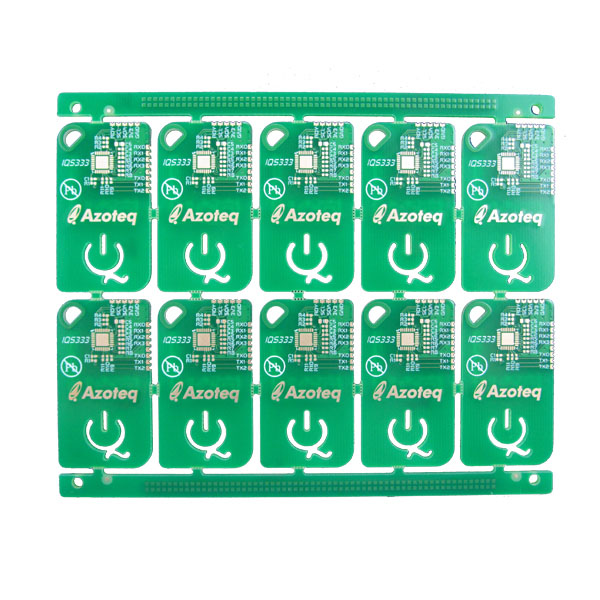

2 layer circuit board plated half hole PCB for Sensor product

Short Description:

This is a 2 layer circuit board with plated half hole for sensor product. UL certified Shengyi S1141, FR-4 tg130, 1.6mm thickness, 1.5 OZ(50um) copper thickness, green solder mask and white silk screen.  There is QR-code on the PCB to identify. All the production complay with RoHS requirement.


  • FOB Price: US $0.20/Piece
  • Min Order Quantity(MOQ): 1 PCS
  • Supply Capability: 100,000,000 PCS per month
  • Payment Terms: T/T/, L/C, PayPal
  • Product Detail

    Product Tags

    Product Details

    Layers 2 layers
    Board thickness 1.60MM
    Material FR4 tg130
    Copper thickness 1.5 OZ(50um)
    Surface Finish ENIG  Nickel 150〞 Au 1〞
    Min Hole(mm) 0.23mm
    Min Line Width(mm) 0.21mm
    Min Line Space(mm) 0.19mm
    Solder Mask Green
     Legend Color White
    Mechanical processing Stamp hole, CNC Milling(routing)
    Packing Anti-static bag
    E-test Flying probe or Fixture
    Acceptance standard IPC-A-600H Class 2
    Application Sensor product

    1. Introduction

    In this section, we would like to provide you with some basic details about the manufacture of single and double-sided printed circuit boards. This is meant to help you to make decisions when placing an order. We are happy to send you more extensive product information based on your requests.



    2. General details


    Standard

    Special**

    Max. circuit size   508mm X 610mm 500mm*1200mm
    Thickness of the printed circuit   0.50 - 0.80 - 1.00 - 1.55 - 2.00 - 2.40mm  0.1mm to 4.2mm
    Copper coating   18 - 35 - 70 - 105µm   as requested



    3. Materials

    Material type   Material class
    Standard FR4   Expoy resin glass fabric
    Modified FR4 system   Medium Tg, high Tg, halogen free
    CEM1   Hard paper core with FR4 external layers
    High frequency material   Rogers RO 4003®

    Isola FR408, Isola370HR etc

    You are welcome to ask about other materials. We are happy to send datasheets on request.



    4. Mechanical processing

    • Scoring
    • Milling contour
    • CNC Routing
    • Punch
    • Vertical milling
    • Edge metallisation
    • Mechanical drilling (from 0.15 mm diameter)
    • Laser drilling



    5. Solder Mask

    Green, Blue, Red, White, Black, Clear, Yellow, etc.



    6. Surface Finish

    HASL(lead free), Immersion gold(ENIG/hard/soft), Selective Gold, Immersion Silver, OSP, Gold Finger, Carbon Print, Peelable S/M



    7. Silk Screen

    White, blue, red, yellow, black, green



    8. Test systems

    AOI (Automatic Optical Inspection)

    Electrical test (flying probe or fixture)

    Thermal shock tests

    Cutting sections for analysis

    Microscopic investigations

    Final electrical tests



    Talk to our sales team (+86 185 0306 1610 or sales@pandawillcircuit.com). We will look together for a functional, optimized and cost-effective solution for your printed circuit boards.

    For more detailed technological questions on printed circuit boards, please contact our team of technologists (+86 755 2790 0595 or eng@pandawillcircuit.com).
